Screw Coupling M22

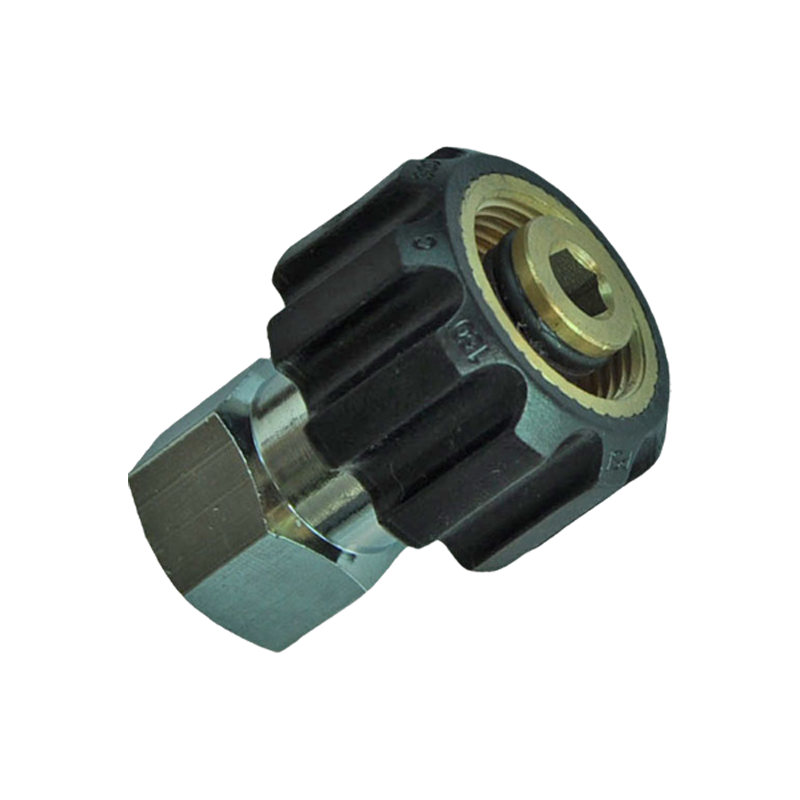

Nickel-Plated Brass M22 Spiral Connector

The nickel plated brass M22 spiral connector is a conventional pipe connection method in the field of cleaning machinery. It is screwed together with internal and external threads. At the same time, the pin in the internal thread connector is inserted into the hole in the external thread connector, and it is sealed with an O-ring. It is convenient and practical, with a stable and firm connection and can withstand high pressure; it is fast to connect and easy to disconnect, just unscrew the threads; the connector body is made of brass, which has strong corrosion resistance and can be used for a long time in acid and salty media; there is a plastic sleeve outside the nut, which feels good and smooth to turn the nut, and can also prevent scalding, making it suitable for use in hot water media; in addition, the surface of the connector is nickel-plated, which can better prevent corrosion and will not turn copper green after long-term use

PREV：Brass Nickel Plated M22 Spiral Joint NEXT：No next article
Contact Us

Detailed Parameters

Max Pressure	280bar - 4000psi;
Max Temp.	150ºC - 300ºF;
Material	Brass
M22*1.5F,Ø14

Code	Inlet	Connection
003.030104	G1/4"F	M22x1.5F
003.030106	G3/8"F	M22x1.5F
003.030108	G1/2"F	M22x1.5F
