Pressure Washing Spray Gun

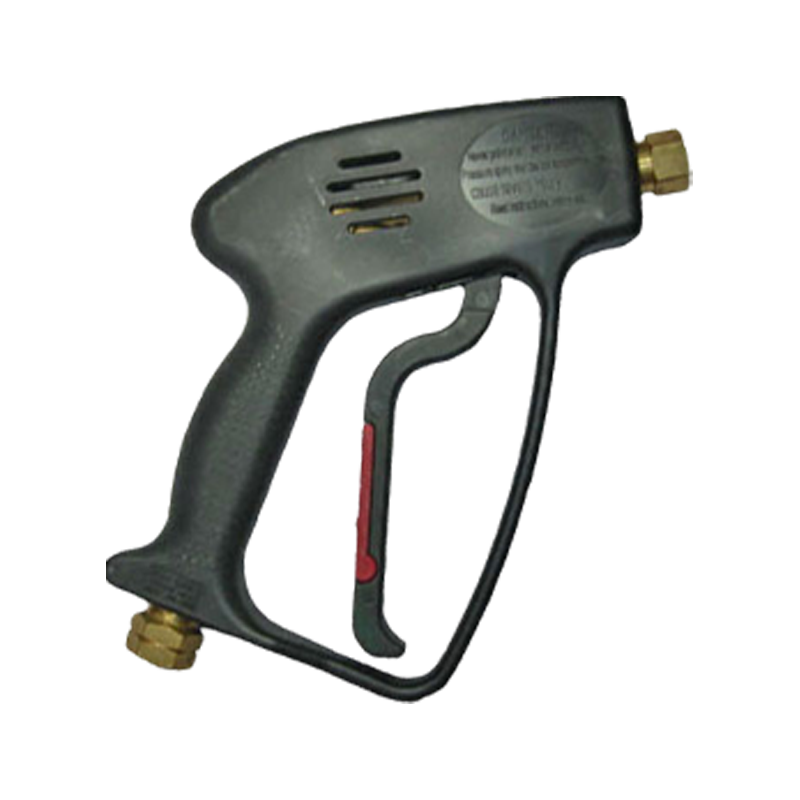

Weep Trigger Spray Gun

The Weep Trigger Spray Gun is an innovative water gun designed specifically to prevent high-pressure water pipes from freezing in winter. Its core feature is the small hole design at the spray gun valve seat. When the spray gun is closed or not working, the water can still flow out slowly through this small hole. The biggest advantage of this design is that it can ensure that the water in the high-pressure water pipe is always in a flowing state, and it can effectively prevent the water in the pipe from freezing and freezing even in extremely cold winter. In cold environments, conventional high-pressure water pipe systems are prone to freezing due to stagnant water flow, which may not only cause the water pipe to rupture, but may even affect the normal operation of the entire water pump system. The Weep Trigger Spray Gun ensures that the water flow in the water pipe will not freeze due to low temperature through the well-designed drainage holes. Even if the spray gun is not in use, the water will still drip out slowly from the small hole to keep the water in the pipe flowing continuously, thereby greatly reducing the risk of freezing and cracking the pipe. This dripping water gun is very suitable for cold areas, especially for high-pressure cleaning systems that are exposed to outdoor environments for a long time in winter. When using the Weep Trigger Spray Gun, keeping the water flowing not only protects the pipes, but also improves cleaning efficiency because the pipes no longer need to go through the thawing process and can be put into use at any time.

PREV：High Pressure Power Spray Gun NEXT：Soft Grip Industrial High Pressure Spray Gun
Contact Us

Detailed Parameters

Max Pressure	350bar - 5000psi；
Max Flow	40l/min - 10.5USGpm；
Max Temp.	150ºC - 300ºF

Code	Inlet	Outlet
001.023501	G3/8"F	G1/4"F
001.023502	G3/8"F swivel	G1/4"F
001.023503	G3/8"M	G1/4"F
001.023504	M22x1.5M	G1/4"F
