Sewer Nozzle

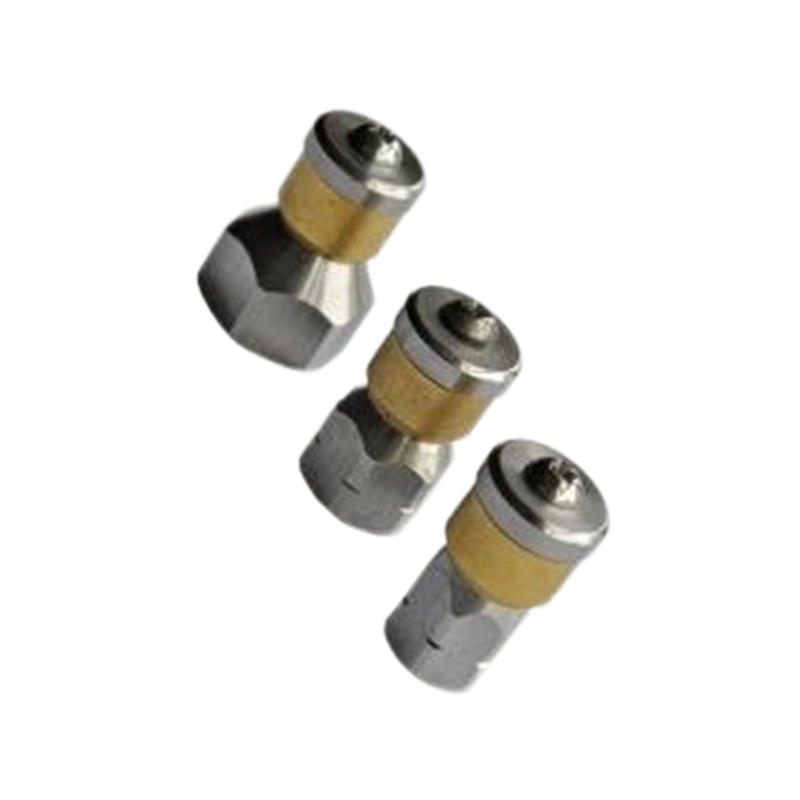

Sewer Rotating Jet Nozzle

The sewer rotating jet nozzle is an efficient pipeline cleaning tool designed specifically for cleaning sewers and drainage pipes. It mainly uses high-pressure water flow and rotary spray to thoroughly remove sediment, dirt, and other blockages inside the pipes. The built-in rotating device is driven by the water flow inside the nozzle, which can cover all corners of the pipeline wall during rotation. The rotation speed and method can be adjusted according to the nozzle design and cleaning needs. Multiple spray holes are configured on the nozzle, and the shape, size, and arrangement of these holes are precisely designed to produce different spray modes (such as high-pressure concentrated spray, fan-shaped spray, etc.) to cope with different types of dirt and pipeline conditions. This nozzle meets the cleaning needs of different types of pipes and dirt, such as heavy oil stains, sludge, plant roots, etc., by adjusting the combination of spray holes and water flow pressure. The nozzle design can adapt to pipes of different diameters and materials, whether they are household drainage pipes, industrial pipes, or municipal sewage pipes, and can effectively clean them.

PREV：No previous article NEXT：Pipe Cleaning Nozzles
Contact Us

Detailed Parameters

Max Pressure	280bar - 4000psi;
Max Temperature	95ºC - 200ºF;
Nozzle Hose	3

Code	Inlet	Nozzle
005.551245	G1/8"F	0.70mm-045
005.551250	G1/8"F	0.75mm-050
005.551255	G1/8"F	0.80mm-055i
005.551265	G1/8"F!	0.90mm-065
005.551280	G1/8"F	1.00mm-080
005.551290	G1/8"F!	\|1.10mm-090
005.551445	G1/4"Fi	0.70mm-045
005.551450	G1/4"Fi	0.75mm-050
005.551455	G1/4"Fi	0.80mm-055
005.551465	G1/4"Fi	0.90mm-065
005.551480	G1/4"Fi	1.00mm-080
005.551490	G1/4"F	1.10mm-090
005.551645	G3/8"F	0.70mm-045
005.551650	G3/8"F	0.75mm-050
005.551655	G3/8"F	0.80mm-055
005.551665	G3/8"F	0.90mm-065
005.551680	G3/8"F	1.00mm-080
005.551690i	G3/8"F	1.10mm-090
