Screw Coupling M22

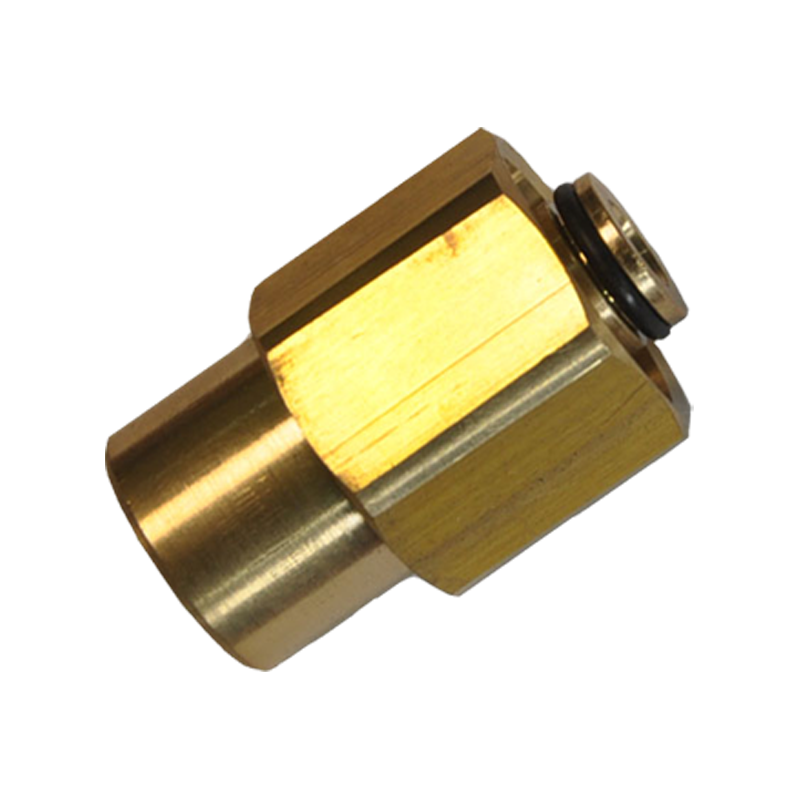

Brass Quick Plug Connector

The brass quick plug connector adopts an innovative 4-start thread design with a pitch of 6mm, which can achieve a longer screw-on length with fewer turns. It only needs one turn to complete the length of 4 turns of conventional thread screwing. It uses the combination of internal and external threads, inserts the pin into the hole in the external threaded connector, and seals with an O-ring to ensure that the connection process is stable and firm. This design can withstand high pressure and is not easy to loosen. It is suitable for occasions requiring high stability and sealing. During use, the surface of the external nut is equipped with a plastic sleeve, which greatly improves the user's operating experience. The plastic sleeve of the nut feels good, making tightening and loosening smoother, and also has an anti-scalding effect, especially suitable for piping systems with hot water or high-temperature fluids.

PREV：Quick Locking Brass Hose Connector NEXT：Brass Quick-Twist Swivel Connector
Contact Us

Detailed Parameters

Max Pressure	280bar - 4000psi;
Max Temp.	150ºC - 300ºF;
Material	Brass
T22*6/4F,Ø14

Code	Inlet	Connection
003.035004	G1/4"F	T22*6/4F
003.035006	G3/8"F	T22*6/4F
