Rotary Nozzle

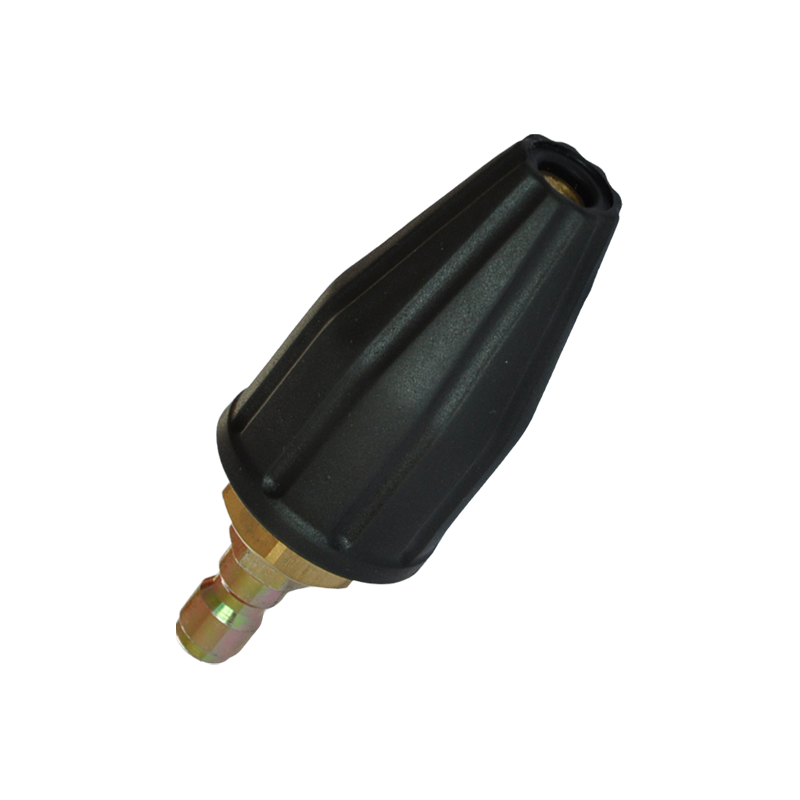

Durable Quick Connect Turbo Nozzle

The Durable Quick Connect Turbo Nozzle redefines the standard for efficient cleaning with its unique design and performance. The heart of this turbo nozzle is its precision-engineered nozzle core, which rotates at high speed inside the nozzle body under the power of high-pressure water, thus spraying a spiral of water. This innovative design not only greatly enhances the impact of the water flow, but also significantly expands the cleaning range, ensuring a more even and comprehensive cleaning job. The spray angle of the Durable Quick Connect Turbo Nozzle is carefully adjusted between 25 and 40 degrees. This angle range helps the water flow to accurately cover the surface to be cleaned for the cleaning effect. Whether it is stubborn stains on the sidewalk, residual marks of wall advertisements, or heavy grease on industrial equipment, this nozzle can easily handle it with pressure performance (up to 250bar) and show powerful cleaning power. Thanks to its efficient cleaning mechanism, the Durable Quick Connect Turbo Nozzle significantly shortens the cleaning cycle and improves work efficiency. In a fast-paced industrial environment, this means higher productivity and lower operating costs. Selecting the right nozzle aperture is essential to optimize the performance of the pressure washer pump. This product offers a variety of bore diameter options to ensure a match with the performance requirements of different pumps, thereby optimizing the efficiency of the pump and extending its service life.

PREV：High Pressure 90ºC - 200ºF Turbo Nozzle NEXT：Quick Connect Turbo Nozzle
Contact Us

Detailed Parameters

Max Pressure	250bar - 3600psi;
Max Temperature	90ºC - 200ºF

Code	Inlet	Nozzle Size
005.040330	1/4"Plug	1.05mm-030
005.040335	1/4"Plug	1.13mm-035
005.040340	1/4"Plug	1.20mm-040
005.040345	1/4"Plug	1.30mm-045
005.040350	1/4"Plug	1.40mm-050
005.040355i	1/4"Plug	1.45mm-055
005.040360i	1/4"Plug	1.53mm-060
005.040365	1/4"Plug	1.60mm-065
005.040370i	1/4"Plug	1.70mm-070
