Q.C. Spray Nozzle

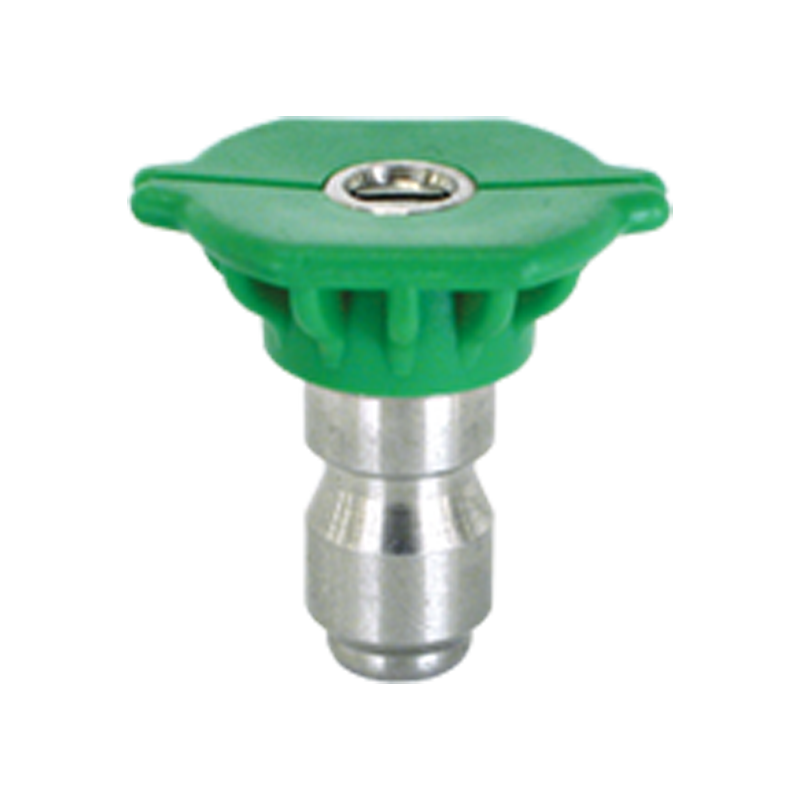

25º QUICK CONNECT SPRAY NOZZLE
Detailed Parameters
| Code | Nozzle Size | |||||
| 005.012520 | 020 | |||||
| 005.012525 | 025 | |||||
| 005.012530 | 030 | |||||
| 005.012535 | 035 | |||||
| 005.012540 | 040 | |||||
| 005.012545 | 045 | |||||
| 005.012550 | 050 | |||||
| 005.012555 | 055 | |||||
| 005.012560 | 060 | |||||
| 005.012565 | 065 | |||||
| 005.012570 | 070 | |||||
| 005.012575 | 075 | |||||
| 005.012580 | 080 | |||||
| 005.012585 | 085 | |||||
| 005.012590 | 090 | |||||
| TABLE FOR THE SUITABLE NOZZLE | |||||||||||||||||||||||||||
| Flow rate in l/min - USGpm at the indicated pressure bar - psi | |||||||||||||||||||||||||||
| Pressure | 02 | 025 | 030 | 035 | 040 | 045 | 050 | 055 | 060 | 065 | 070 | 075 | 080 | 085 | 090 | 100 | 110 | 120 | 130 | 140 | 150 | Flow rate | |||||
| 50bar | 3.2 | 4.1 | 4.8 | 5.5 | 6.6 | 7.1 | 8 | 8.7 | 9.6 | 10.4 | 11.2 | 12 | 12.7 | 13.5 | 14.3 | 16 | 17.3 | 18.9 | 20.5 | 22.1 | 23.9 | l/min | |||||
| 725psi | 0.9 | 1.1 | 1.3 | 1.5 | 1.8 | 1.9 | 2.1 | 2.3 | 2.6 | 2.8 | 3.0 | 3.2 | 3.4 | 3.6 | 3.8 | 4.3 | 4.6 | 5.0 | 5.5 | 5.9 | 6.4 | USGpm | |||||
| 60bar | 3.5 | 4.4 | 5.3 | 6.0 | 7.3 | 7.8 | 8.7 | 9.6 | 10.4 | 11.3 | 12.2 | 13.1 | 14 | 14.8 | 15.7 | 17.4 | 19 | 20.8 | 22.5 | 24.2 | 26.1 | l/min | |||||
| 870psi | 0.9 | 1.2 | 1.4 | 1.6 | 1.9 | 2.1 | 2.3 | 2.6 | 2.8 | 3.0 | 3.3 | 3.5 | 3.7 | 3.9 | 4.2 | 4.6 | 5.1 | 5.5 | 6.0 | 6.5 | 7.0 | USGpm | |||||
| 70bar | 3.7 | 4.8 | 5.7 | 6.5 | 7.8 | 8.4 | 9.4 | 10.3 | 11.3 | 12.3 | 13.2 | 14.2 | 15.1 | 16 | 17 | 18.9 | 20.5 | 22.4 | 24.3 | 26.1 | 28.3 | l/min | |||||
| 1015psi | 1.0 | 1.3 | 1.5 | 1.7 | 2.1 | 2.2 | 2.5 | 2.7 | 3.0 | 3.3 | 3.5 | 3.8 | 4.0 | 4.3 | 4.5 | 5.0 | 5.5 | 6.0 | 6.5 | 7.0 | 7.5 | USGpm | |||||
| 80bar | 4.0 | 5.0 | 6.1 | 7.0 | 8.4 | 9.0 | 10 | 11.1 | 12.1 | 13.2 | 14.1 | 15.2 | 16.1 | 17.1 | 18.0 | 20.1 | 22.0 | 24.0 | 26.0 | 28.0 | 30.2 | l/min | |||||
| 1160psi | 1.1 | 1.3 | 1.6 | 1.9 | 2.2 | 2.4 | 2.7 | 3.0 | 3.2 | 3.5 | 3.8 | 4.1 | 4.3 | 4.6 | 4.8 | 5.4 | 5.9 | 6.4 | 6.9 | 7.5 | 8.1 | USGpm | |||||
| 90bar | 4.2 | 5.2 | 6.3 | 7.4 | 8.9 | 9.6 | 10.7 | 11.8 | 12.8 | 14.0 | 15.0 | 16.1 | 17.1 | 18.1 | 19.2 | 21.4 | 23.3 | 25.4 | 27.5 | 29.6 | 32.1 | l/min | |||||
| 1305psi | 1.1 | 1.4 | 1.7 | 2.0 | 2.4 | 2.6 | 2.9 | 3.1 | 3.4 | 3.7 | 4.0 | 4.3 | 4.6 | 4.8 | 5.1 | 5.7 | 6.2 | 6.8 | 7.3 | 7.9 | 8.6 | USGpm | |||||
| 100bar | 4.5 | 5.6 | 6.8 | 7.8 | 9.4 | 10.2 | 11.3 | 12.4 | 13.6 | 14.7 | 15.8 | 16.9 | 18.0 | 19.1 | 20.2 | 22.5 | 24.5 | 26.8 | 29.0 | 31.3 | 33.8 | l/min | |||||
| 1450psi | 1.2 | 1.5 | 1.8 | 2.1 | 2.5 | 2.7 | 3.1 | 3.3 | 3.6 | 3.9 | 4.2 | 4.5 | 4.8 | 5.1 | 5.4 | 6.0 | 6.5 | 7.1 | 7.7 | 8.3 | 9.0 | USGpm | |||||
| 110bar | 4.7 | 5.9 | 7.1 | 8.2 | 9.8 | 10.5 | 11.8 | 13.0 | 14.3 | 15.4 | 16.6 | 17.7 | 18.9 | 20.0 | 21.2 | 23.6 | 25.7 | 28.1 | 30.4 | 32.8 | 35.3 | l/min | |||||
| 1395psi | 1.3 | 1.6 | 1.9 | 2.2 | 2.6 | 2.8 | 3.1 | 3.5 | 3.8 | 4.1 | 4.4 | 4.7 | 5.0 | 5.3 | 5.7 | 6.3 | 6.9 | 7.5 | 8.1 | 8.7 | 9.4 | USGpm | |||||
| 120bar | 4.8 | 6.1 | 7.4 | 8.6 | 10.3 | 10.9 | 12.4 | 13.6 | 14.9 | 16.1 | 17.3 | 18.5 | 19.7 | 20.9 | 22.1 | 24.6 | 26.9 | 29.4 | 31.8 | 34.2 | 36.9 | l/min | |||||
| 1740psi | 1.3 | 1.6 | 2.0 | 2.3 | 2.7 | 2.9 | 3.3 | 3.6 | 4.0 | 4.3 | 4.6 | 4.9 | 5.3 | 5.6 | 5.9 | 6.6 | 7.2 | 7.8 | 8.5 | 9.1 | 9.8 | USGpm | |||||
| 130bar | 5.0 | 6.3 | 7.7 | 8.9 | 10.7 | 11.4 | 12.9 | 14.1 | 15.5 | 16.8 | 18.0 | 19.3 | 20.5 | 21.8 | 23.0 | 25.6 | 28.0 | 30.6 | 33.1 | 35.6 | 38.4 | l/min | |||||
| 1885psi | 1.3 | 1.7 | 2.1 | 2.4 | 2.9 | 3.0 | 3.4 | 3.8 | 4.1 | 4.5 | 4.8 | 5.1 | 5.5 | 5.8 | 6.1 | 6.8 | 7.5 | 8.2 | 8.8 | 9.5 | 10.2 | USGpm | |||||
| 140bar | 5.3 | 6.7 | 8.0 | 9.2 | 11.1 | 11.8 | 13.4 | 14.7 | 16.0 | 17.4 | 18.7 | 20.0 | 21.3 | 22.6 | 23.9 | 26.6 | 29.1 | 31.7 | 34.4 | 37.0 | 39.9 | l/min | |||||
| 2030psi | 1.4 | 1.7 | 2.1 | 2.5 | 3.0 | 3.1 | 3.6 | 3.9 | 4.3 | 4.6 | 5.0 | 5.3 | 5.7 | 6.0 | 6.4 | 7.1 | 7.8 | 8.5 | 9.2 | 9.9 | 10.6 | USGpm | |||||
| 150bar | 5.4 | 6.8 | 8.3 | 9.5 | 11.5 | 12.2 | 13.8 | 15.2 | 16.7 | 18.0 | 19.3 | 20.7 | 22.0 | 23.4 | 24.7 | 27.6 | 30.1 | 32.8 | 35.6 | 38.3 | 41.3 | l/min | |||||
| 2175psi | 1.4 | 1.8 | 2.2 | 2.5 | 3.1 | 3.3 | 3.7 | 4.1 | 4.5 | 4.8 | 5.1 | 5.5 | 5.9 | 6.2 | 6.6 | 7.4 | 8.0 | 8.7 | 9.5 | 10.2 | 11.0 | USGpm | |||||
| 170bar | 6.0 | 7.4 | 8.9 | 10.2 | 11.9 | 13.4 | 14.9 | 16.3 | 17.9 | 19.3 | 20.9 | 22.3 | 23.7 | 25.3 | 24.4 | 30.0 | 32.6 | 35.2 | 39.1 | 41.7 | 44.3 | l/min | |||||
| 2465psi | 1.6 | 1.9 | 2.3 | 2.7 | 3.1 | 3.5 | 3.9 | 4.3 | 4.7 | 5.1 | 5.5 | 5.9 | 6.3 | 6.7 | 7.2 | 7.9 | 8.6 | 9.3 | 10.3 | 11.0 | 11.7 | USGpm | |||||
| 180bar | 6.2 | 7.6 | 9.1 | 10.5 | 12.2 | 13.8 | 15.3 | 16.8 | 18.4 | 19.9 | 21.5 | 22.9 | 24.4 | 26.0 | 28.2 | 30.9 | 33.5 | 36.2 | 40.2 | 42.9 | 45.6 | l/min | |||||
| 2610psi | 1.6 | 2.0 | 2.4 | 2.8 | 3.2 | 3.7 | 4.0 | 4.4 | 4.9 | 5.2 | 5.7 | 6.1 | 6.5 | 6.9 | 7.4 | 8.2 | 8.9 | 9.6 | 10.6 | 11.3 | 12.1 | USGpm | |||||
| 200bar | 6.3 | 7.9 | 9.6 | 11.0 | 13.3 | 14.1 | 16.0 | 17.5 | 19.2 | 20.8 | 22.3 | 23.9 | 25.2 | 27.0 | 28.6 | 31.8 | 34.7 | 37.9 | 41.1 | 44.3 | 47.7 | l/min | |||||
| 2900psi | 1.7 | 2.1 | 2.6 | 2.9 | 3.5 | 3.8 | 4.3 | 4.7 | 5.1 | 5.5 | 5.9 | 6.4 | 6.7 | 7.2 | 7.6 | 8.5 | 9.3 | 10.1 | 11.0 | 11.8 | 12.7 | USGpm | |||||
| 225bar | 6.7 | 8.4 | 10.2 | 11.7 | 14.1 | 15.0 | 16.9 | 18.6 | 20.4 | 22.0 | 23.7 | 25.3 | 27.0 | 28.6 | 30.3 | 33.7 | 36.8 | 40.2 | 43.6 | 46.9 | 50.6 | l/min | |||||
| 3263psi | 1.8 | 2.2 | 2.7 | 3.1 | 3.8 | 4.0 | 4.5 | 5.0 | 5.4 | 5.9 | 6.3 | 6.7 | 7.2 | 7.6 | 8.1 | 9.0 | 9.8 | 10.7 | 11.6 | 12.5 | 13.5 | USGpm | |||||
| 250bar | 7.0 | 8.8 | 10.7 | 12.3 | 14.8 | 15.8 | 17.9 | 19.6 | 21.5 | 23.2 | 25.0 | 26.7 | 28.5 | 30.2 | 31.9 | 35.6 | 38.8 | 42.4 | 45.9 | 49.4 | 53.3 | l/min | |||||
| 3625psi | 1.9 | 2.4 | 2.9 | 3.3 | 3.9 | 4.2 | 4.8 | 5.2 | 5.7 | 6.2 | 6.7 | 7.1 | 7.6 | 8.1 | 8.5 | 9.5 | 10.3 | 11.3 | 12.2 | 13.2 | 14.2 | USGpm | |||||
| 275bar | 7.6 | 9.3 | 11.2 | 12.8 | 15.0 | 16.9 | 18.7 | 20.5 | 22.5 | 24.3 | 26.3 | 28.1 | 29.9 | 31.9 | 34.5 | 37.8 | 41.1 | 45.4 | 49.3 | 52.6 | 55.9 | l/min | |||||
| 3988psi | 2.0 | 2.5 | 3.0 | 3.4 | 4.0 | 4.5 | 4.9 | 5.4 | 5.9 | 6.4 | 6.9 | 7.4 | 7.9 | 8.4 | 9.1 | 10.0 | 10.9 | 11.7 | 13.0 | 13.9 | 14.8 | USGpm | |||||
| 300bar | 7.9 | 9.9 | 11.9 | 13.5 | 15.8 | 17.9 | 19.8 | 21.7 | 23.7 | 25.7 | 27.8 | 29.6 | 31.5 | 33.5 | 36.4 | 39.7 | 43.2 | 46.8 | 51.9 | 55.4 | 58.8 | l/min | |||||
| 4350psi | 2.1 | 2.6 | 3.2 | 3.6 | 4.2 | 4.8 | 5.3 | 5.8 | 6.3 | 6.9 | 7.4 | 7.9 | 8.4 | 8.9 | 9.7 | 10.6 | 11.5 | 12.5 | 13.8 | 14.8 | 15.7 | USGpm | |||||
| 350bar | 8.5 | 10.7 | 12.8 | 14.6 | 17.0 | 19.3 | 21.3 | 23.5 | 25.7 | 27.8 | 29.9 | 32.0 | 34.1 | 36.1 | 39.3 | 43.1 | 46.7 | 50.4 | 56.2 | 60.0 | 63.5 | l/min | |||||
| 5075psi | 2.3 | 2.8 | 3.4 | 3.9 | 4.5 | 5.1 | 5.7 | 6.3 | 6.9 | 7.4 | 8.0 | 8.5 | 9.1 | 9.6 | 10.5 | 11.5 | 12.5 | 13.4 | 15.0 | 16.0 | 16.9 | USGpm | |||||
| 400bar | 9.0 | 11.3 | 13.6 | 15.6 | 18.2 | 20.7 | 22.9 | 25.1 | 27.5 | 29.7 | 32.1 | 34.2 | 36.3 | 38.7 | 41.8 | 46.2 | 50.1 | 54.1 | 60.2 | 63.9 | 68.1 | l/min | |||||
| 5800psi | 2.4 | 3.0 | 3.6 | 4.2 | 4.9 | 5.5 | 6.1 | 6.7 | 7.3 | 7.9 | 8.6 | 9.1 | 9.7 | 10.3 | 11.1 | 12.3 | 13.4 | 14.4 | 16.1 | 17.0 | 18.2 | USGpm | |||||
| 450bar | 9.6 | 12.0 | 14.5 | 16.5 | 19.3 | 21.8 | 24.2 | 26.6 | 29.2 | 31.5 | 34.1 | 36.3 | 38.5 | 41.1 | 44.4 | 49.0 | 53.1 | 57.3 | 63.6 | 67.9 | 72.1 | l/min | |||||
| 6525psi | 2.6 | 3.2 | 3.9 | 4.4 | 5.1 | 5.8 | 6.5 | 7.1 | 7.8 | 8.4 | 9.1 | 9.7 | 10.3 | 11.0 | 11.8 | 13.1 | 14.2 | 15.3 | 17.0 | 18.1 | 19.2 | USGpm | |||||
| 500bar | 10.2 | 12.7 | 15.2 | 17.3 | 20.2 | 22.9 | 25.6 | 28.2 | 30.7 | 33.2 | 36.0 | 38.2 | 40.8 | 43.5 | 47.1 | 51.5 | 55.9 | 60.4 | 67.1 | 71.6 | 76.1 | l/min | |||||
| 7250psi | 2.7 | 3.4 | 4.1 | 4.6 | 5.4 | 6.1 | 6.8 | 7.5 | 8.2 | 8.9 | 9.6 | 10.2 | 10.9 | 11.6 | 12.6 | 13.7 | 14.9 | 16.1 | 17.9 | 19.1 | 20.3 | USGpm | |||||
