Pressure Gauge

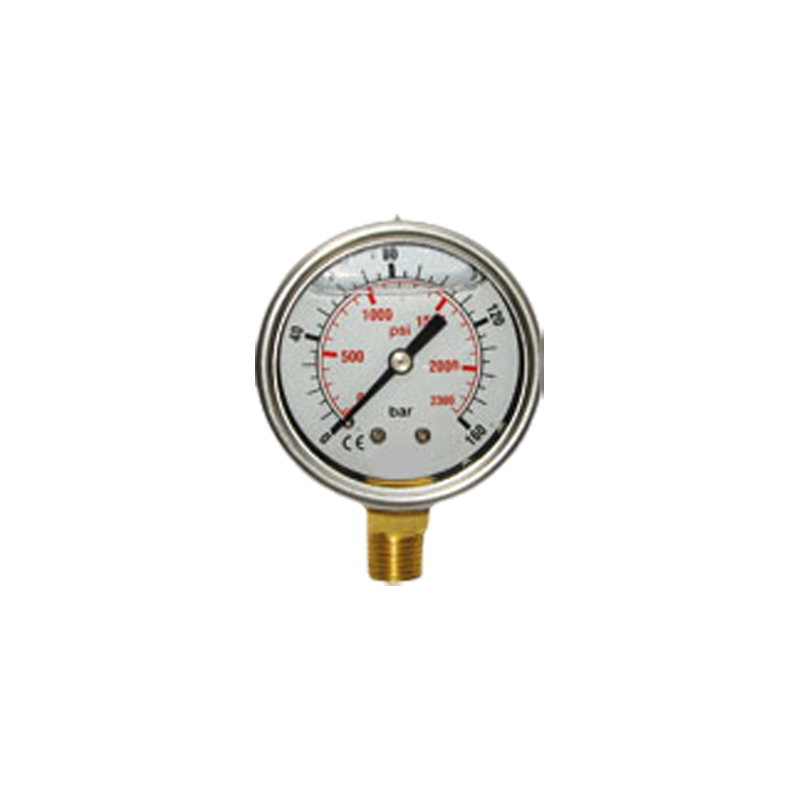

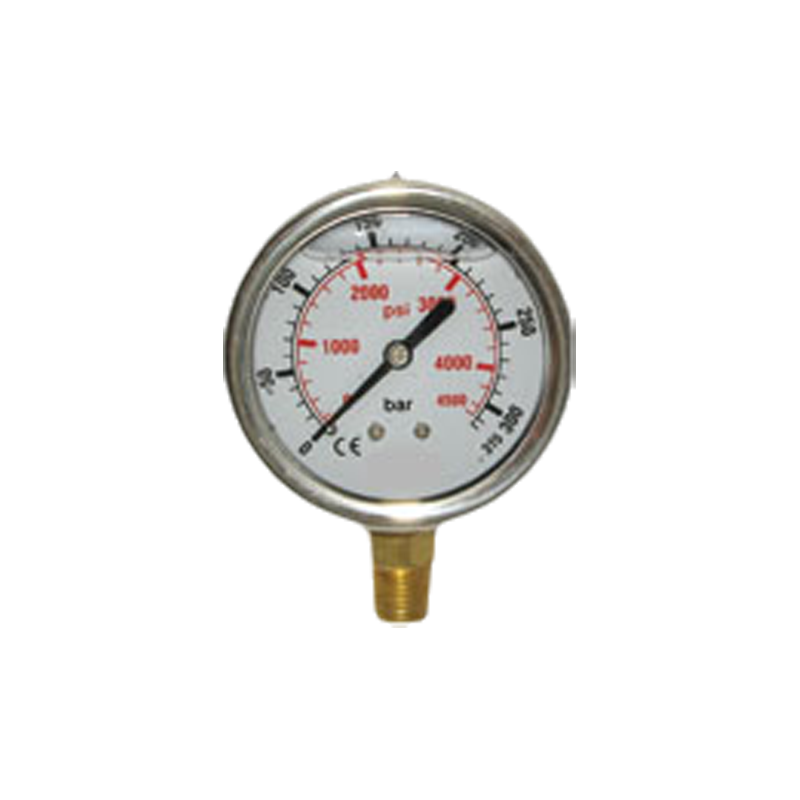

Bottom Entry Liquid Filled Pressure Gauges

Bottom Entry Liquid Filled Pressure Gauges are high-performance instruments for measuring fluid pressure. The unique bottom connection design allows the connection thread to be located at the bottom of the pressure gauge, making it easy to install at a higher position on the equipment or system, and convenient for operators to monitor remotely. The pressure gauge is filled with liquid (such as silicone oil or glycerin), which can effectively reduce the impact of external vibration and shock on the pointer, thereby ensuring the stability and accuracy of data measurement. This liquid-filled pressure gauge is very suitable for high-pressure fluid media and can withstand strong pressure fluctuations without affecting the accuracy of the reading. It uses a stainless steel shell, which greatly enhances the corrosion resistance and is suitable for use in harsh industrial environments, ensuring long-term stable operation. Whether in high temperature, high humidity or chemical corrosion environment, Bottom Entry Liquid Filled Pressure Gauges can provide reliable performance and are widely used in petrochemical, metallurgy, mechanical equipment and other fields.

PREV：Back Entry without Liquid Filled Pressure Gauges NEXT：Stainless Steel Rear Entry Pressure Gauge
Contact Us

Detailed Parameters

Case and ring made of stainless steel;
liquid filled;
bottom entry

Code	0.D.	Inlet	Scale
006.025016	50mm(2.0")	R1/4"M	0-160bar/0-2300psi
006.025025	50mm(2.0")	R1/4"M	0-250bar/0-3600psi
006.025031	50mm(2.0")	R1/4"M	0-315bar/0-4500psi
006.025040	50mm(2.0")	R1/4"M	0-400bar/0-5800psi
006.026316	63mm(2.5")	R1/4"M	0-160bar/0-2300psi
006.026325	63mm(2.5")	R1/4"M	0-250bar/0-3600psi
006.026331	63mm(2.5")	R1/4"M	0-315bar/0-4500psi
006.026340	63mm(2.5")	R1/4"M	0-400bar/0-5800psi
