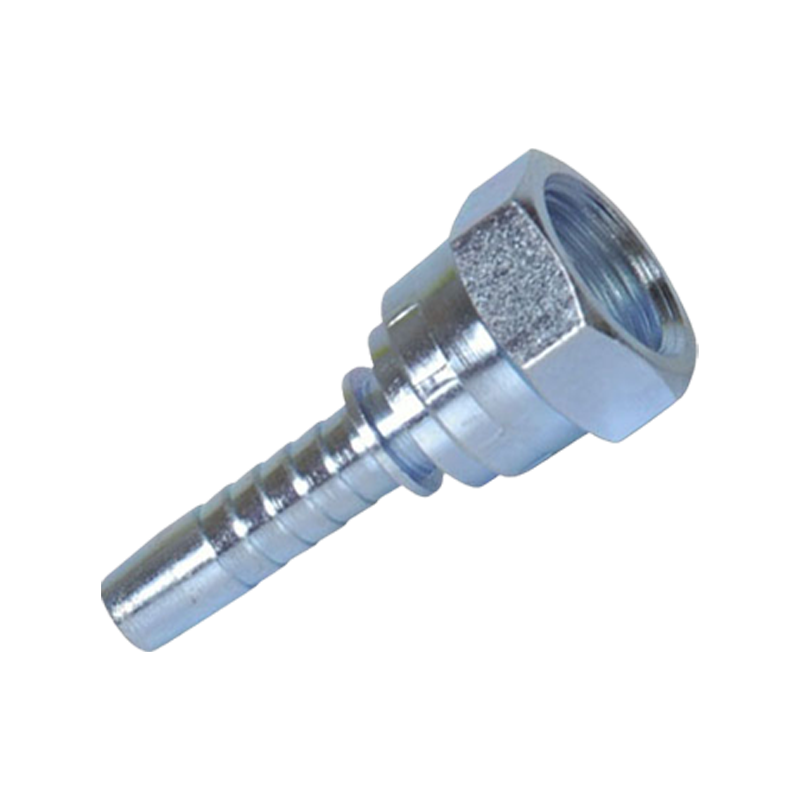

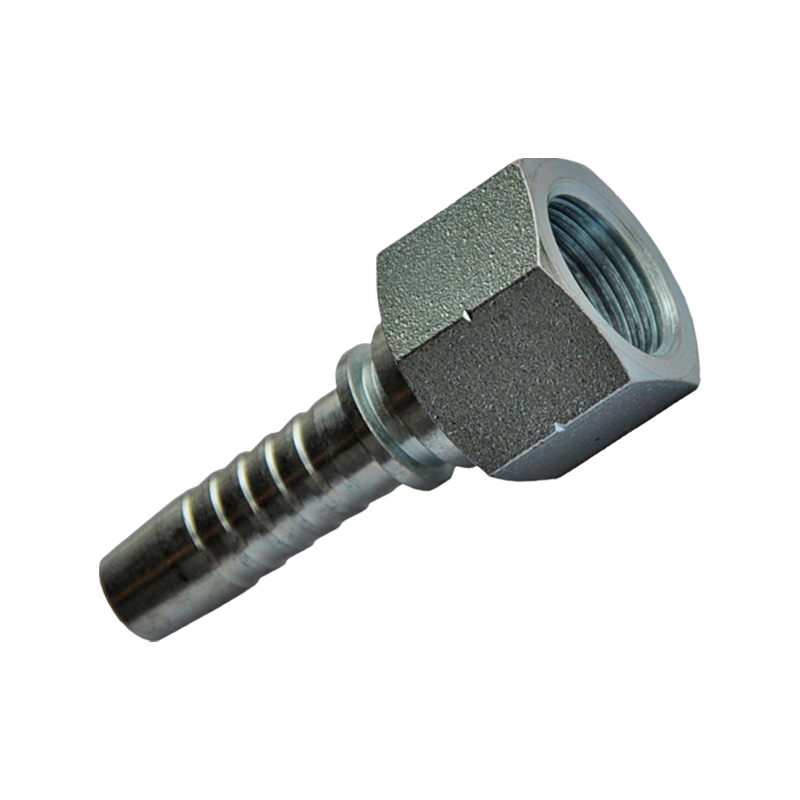

BSP Female 60° Cone Hose End Fittings

BSP Female 60° Cone Hose End Fittings is a high-quality connector designed for high-pressure fluid transmission systems. The connector uses British pipe thread (BSP) as the connection standard. Its unique internal thread design has a rotation function and is equipped with a 60° external cone. This connection method is very common and efficient in the field of pipe fittings. It is usually matched with an external thread with a 60° internal cone. When the two are tightly screwed together, the inner and outer cones fit each other to form a reliable sealing surface, which can withstand extremely high working pressures and ensure the safety and stability of fluid transmission. In the connection part between the pipe fitting and the high-pressure hose, we use an advanced barb design. This design can firmly lock the hose when tightening the hose, effectively preventing it from falling off under high pressure conditions, and ensuring long-term stability and safety. The barb design is widely used in the pipe fitting industry and is recognized as one of the commonly used and reliable connection methods. BSP Female 60° Cone Hose End Fittings uses high-quality carbon steel as the main material, which not only ensures the strength of the joint, but also gives it a certain toughness, so that it can adapt to various complex working environments. The surface of the joint is galvanized, which not only improves the aesthetics of the joint, but more importantly, enhances its anti-corrosion performance, so that it can be used for a long time without being damaged even in ordinary media.

PREV：High Pressure Washer Hose Adapter NEXT：BSP Male 60° Cone Seat Hose Fitting
Contact Us

Detailed Parameters

Max Pressure	280bar - 4000psi；
Max Temp.	90ºC - 195ºF；

Code	Connection	Barb 0.D.
004.040404	G1/4"F	Ø1/4"
004.040405	G1/4"F	Ø5/16"
004.040406	G1/4"F	Ø3/8"
004.040604	G3/8"F	Ø1/4"
1004.040605	G3/8"F	Ø5/16"
4.040606	G3/8"F	Ø3/8"

Code	Connection	Barb 0.D.
004.210404	G1/4"F	Ø1/4"
004.210405	G1/4"F	Ø5/16"
004.210406	G1/4"F	Ø3/8"
004.210604	G3/8"F	Ø1/4"
004.210605	G3/8"F	Ø5/16"
004.210606	G3/8"F	Ø3/8"
