Chemical Injector

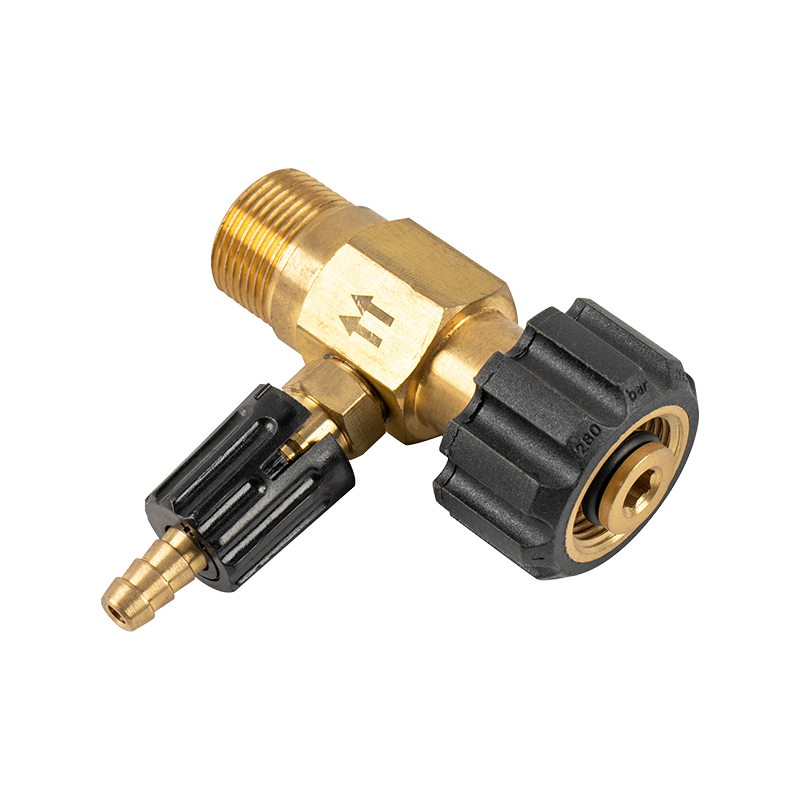

Pressure Washer Chemical Injectors

Pressure Washer Chemical Injectors are an indispensable accessory for high-pressure washers. They are mainly used to mix detergents, disinfectants or other chemical liquids with high-pressure water flow to enhance cleaning effects or disinfection. The syringe is usually installed at the outlet end of the pump and is equipped with a small-aperture nozzle. When the washer is connected to a chemical nozzle with a larger aperture, the aperture of the nozzle inside the syringe forms a pressure difference with the aperture of the external nozzle, thereby generating a siphon effect, automatically opening the one-way valve of the syringe, sucking in the required cleaning liquid or disinfectant, and evenly mixing it with the water flow, and finally spraying it out through the nozzle. The suction volume of the syringe is adjustable. Users can adjust the flow rate through the knob according to actual needs, ensuring accurate control of the required amount of cleaning or disinfectant liquid to meet different usage requirements. The syringe body is made of brass, which has good anti-corrosion properties, ensuring stability and durability during long-term use.

PREV：S.S. Adjustable Chemical Injector F-M Connecting NEXT：Adjustable chemical injector M-M connecting
Contact Us

Detailed Parameters

Max Pressure	280bar - 4000psi;
Max Temp.	90ºC - 195ºF;
Material	Brass

Code

Inlet

Outlet

Nozzle

Flow

007.014118

M22x1.5F

M22x1.5M

Ø1.8

8-101/min(2.11-2.64USGpm)

007.014121

Ø2.1

11-151/min(2.90-4.00USGpm)

007.014123

Ø2.3

15-181/min(4.00-4.75USGpm)
